Description
Mounting Impaler Options* For Wall Panels |
Surface Impalers They are used to mount panels directly onto the wall surface. Four sharpened darts embedded into and supported the acoustic panel fastened to the wall with two screws. Panel installation is quick and easy with minor wall defacement. Qty per Box: 24 pieces per box |

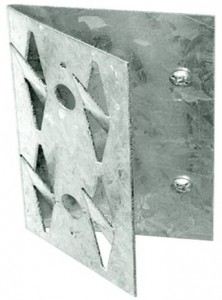

Corner Impalers Turn any room into bass traps by mounting a panel across a 90⁰ corner to form a 17” deep cavity that absorbs bass. The Corner Impalers are easy to install with pivoting darts for left-hand or right-hand mounting. Fasten four Corner Impalers to the walls and hang the panel. Qty per Box: 8 pieces per box |
Offset Impalers Increase absorption by introducing a 3½” air space behind any panel. The Offset Impaler will lower the effective frequency by as much as an octave. It is for left-hand or right-hand installation and features a U-shaped design with pivoting darts. Qty per Box: 8 pieces per box |

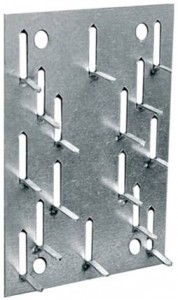

Push-On Impalers The Push-On Impaler allows the installer to push the panel straight onto the Impaler clip, making it easier to align panels in clusters or side by side with accuracy. Qty per Box: 24 pieces per box
|

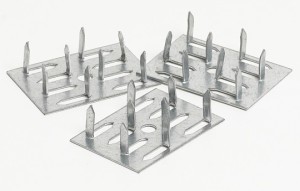

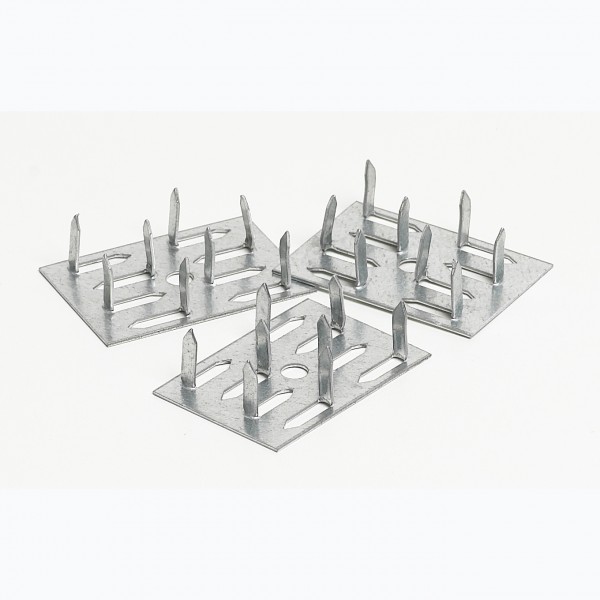

Mini Impalers Our 8-pin Impaling Clips mount to most surfaces. Their center-positioned mounting hole accepts standard fasteners. Affix the impaling clips(s) to the mounting surface. We recommend using adhesive in conjunction with the mini clips to provide secure panel attachment. Position the insulation and press it on the pins and against the mounting surface. They are compatible with 3/4″, 1″, 2″, and 4″ semi-rigid insulation. Qty per Box: 12 pieces per box |
