Introducing – SCR CUSTOM GOBOS LT
Please call with any questions: 818.788.1238
FEATURING: Solid MDF core covered in one-pound vinyl sound barrier; Woodslats over absorber; Lowered wheel carriage creating 2” bottom clearance with 4” heavy-duty lockable polyurethane casters.
High quality, furniture grade, designed to provide separation.
Available in three standard sizes and two finishes. Featuring your choice of SLATPANEL from thewoodveneerhub.com
Model 1 – 4 x 4

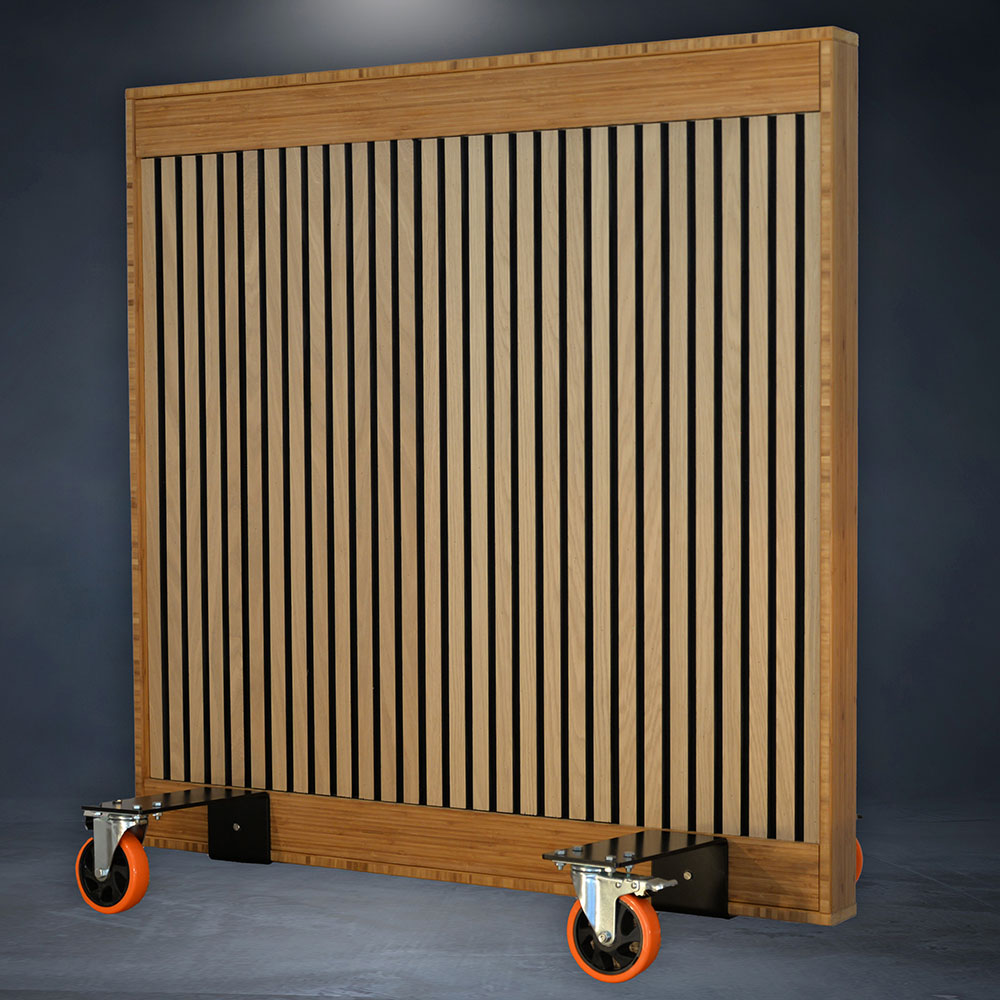

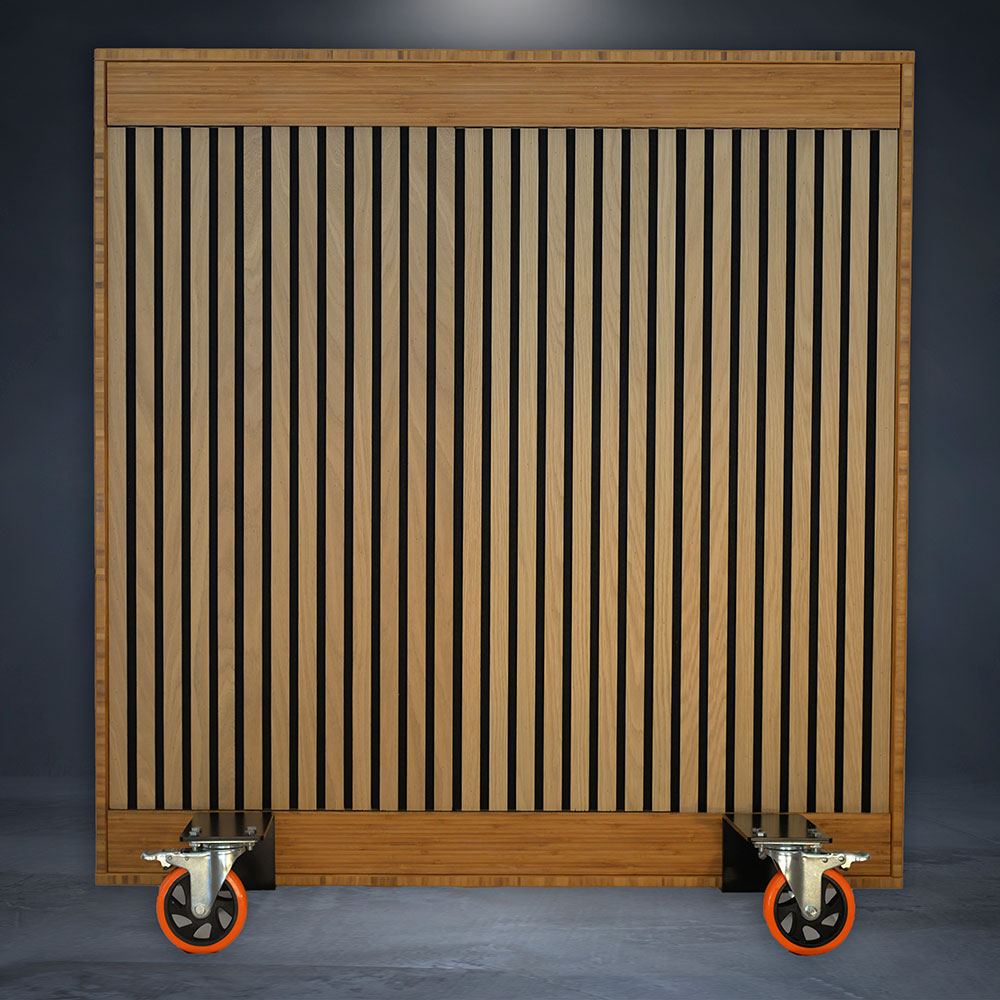

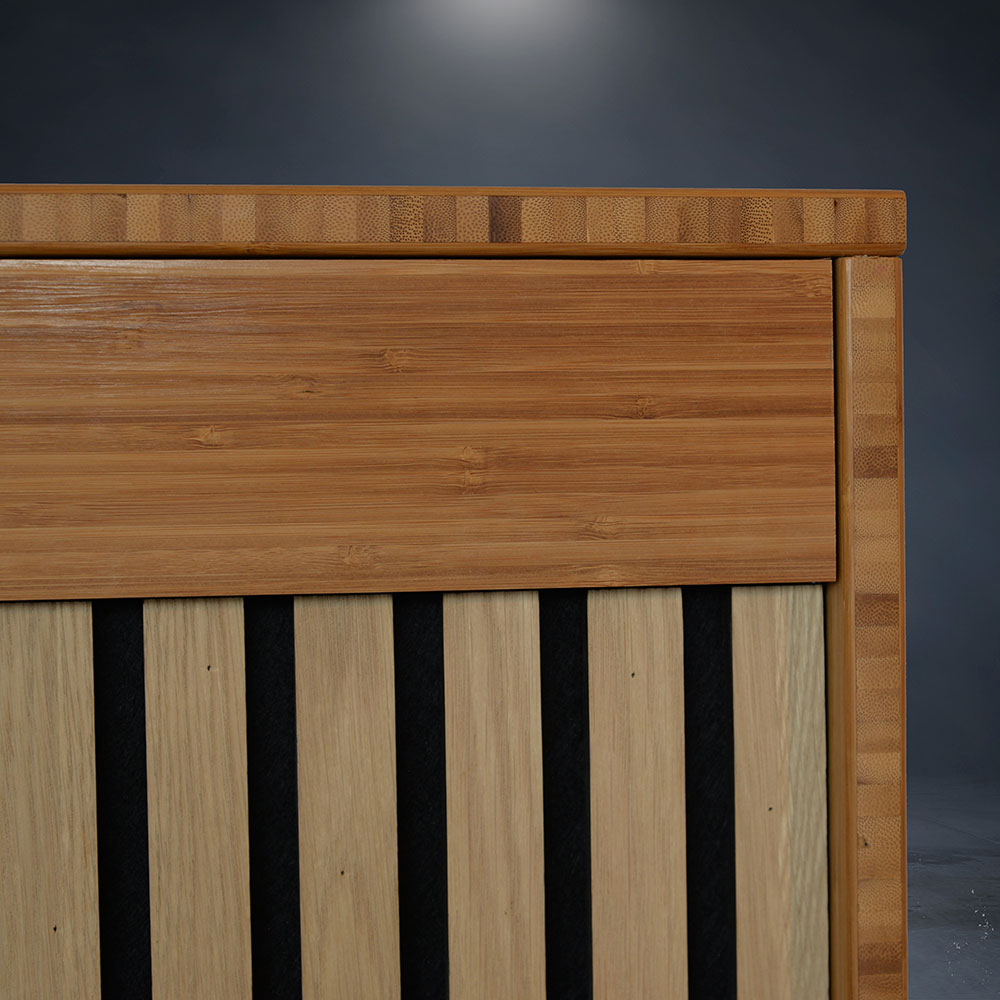

Shown in Bamboo, the Slats are White Natural Oak on Black |
Shown in Bamboo, the WIDE SLATS are Luxe White Natural Oak On Black |
View Shop Drawings
You pick your SLATPANEL color of finish for each of the models from thewoodveneerhub.com
Options:
 |
13-ply Birch |
 |

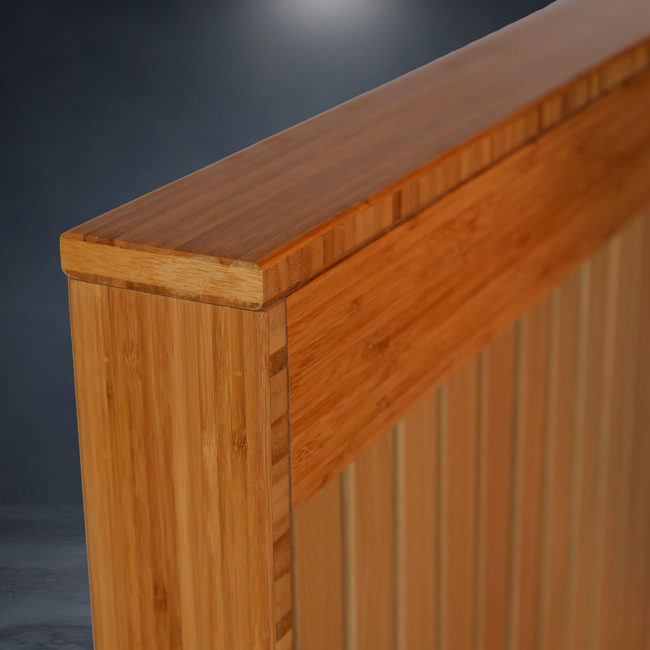

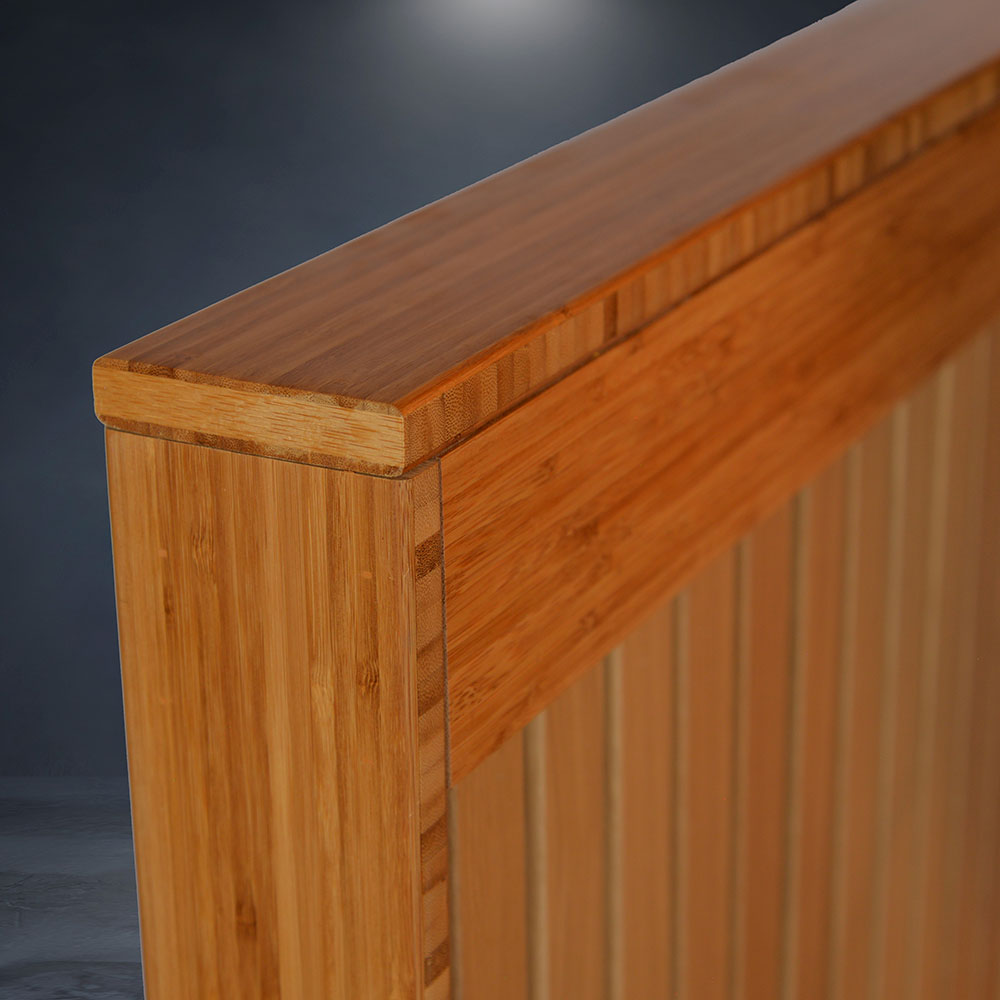

Amber Bamboo – Hand-finished to semi-gloss. |
Measurements:
46 5/8” wide x 46 5/8” high
Total height to floor: 48 ¼”

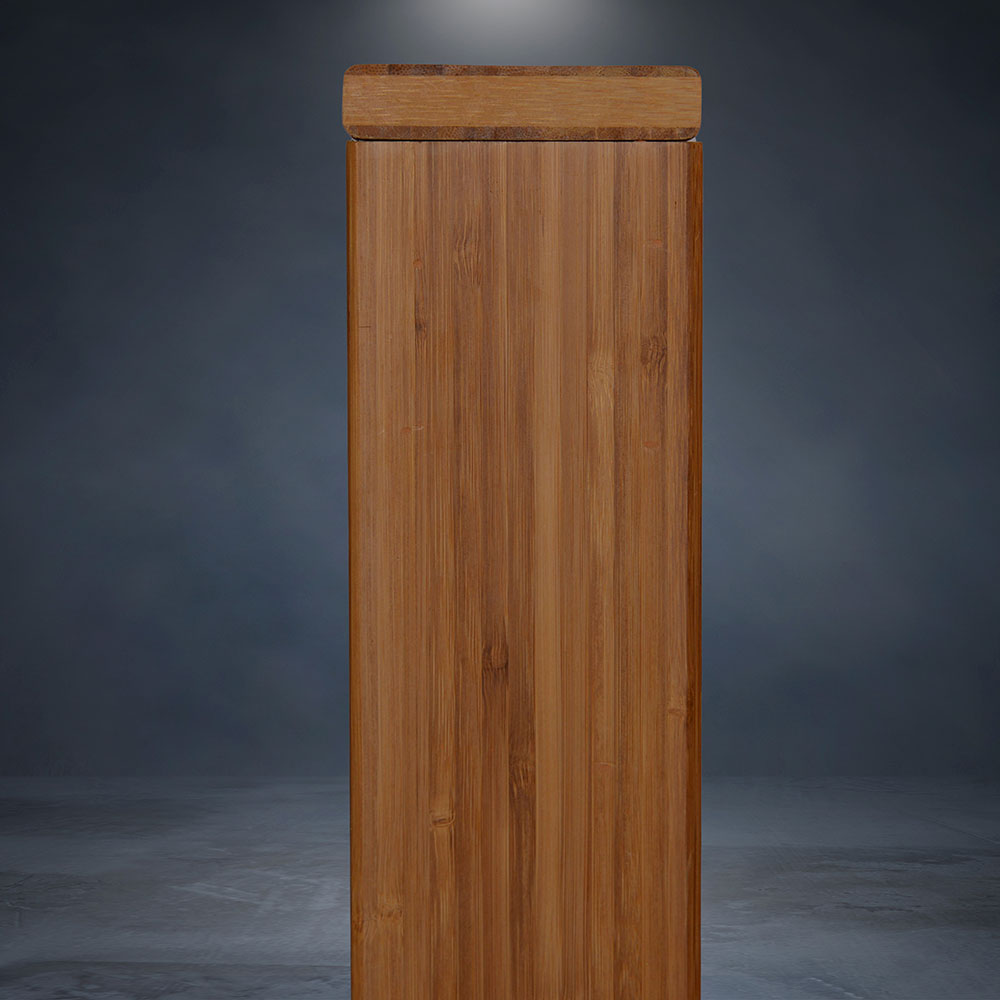

Panel Thickness : 3 ½”
Weight: 135 lbs +/- 8%
Model 2 – 4’ x 6’6”

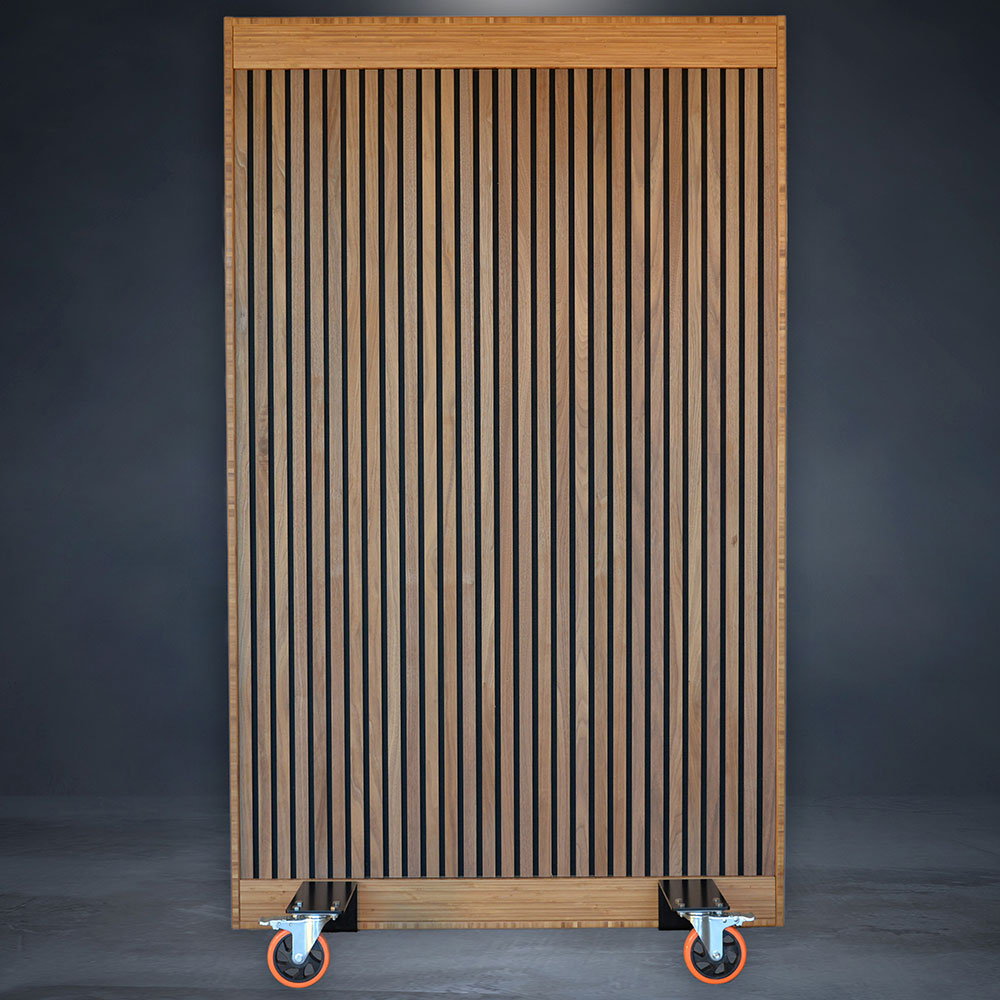

Shown in Bamboo, the Slats are Luxury Natural Walnut on Black |

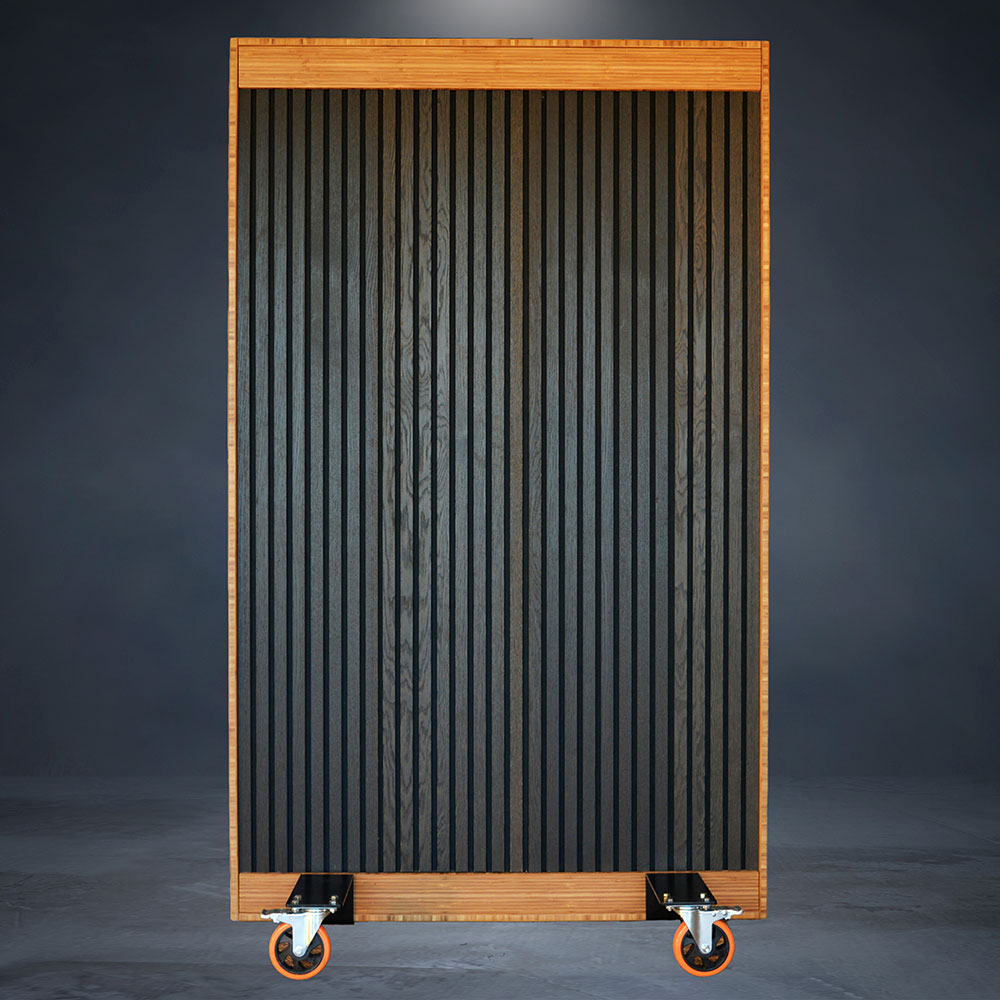

Shown in Bamboo, the Slats are Luxury Smoked Oak On Black |
View Shop Drawings
You pick your SLATPANEL color of finish for each of the models from thewoodveneerhub.com
Options:
|
13-ply Birch |
|
Amber Bamboo – Hand-finished to semi-gloss. |
 |
With or without a window |
Measurements:
46 5/8” wide x 76” high
Total height to floor: 78” / 6’ 6”
Panel Thickness : 3 ½”
Weight: 185 lbs +/- 8%
Fits through a standard 80” door.
Model 3 – 4’ x 7’6”
|

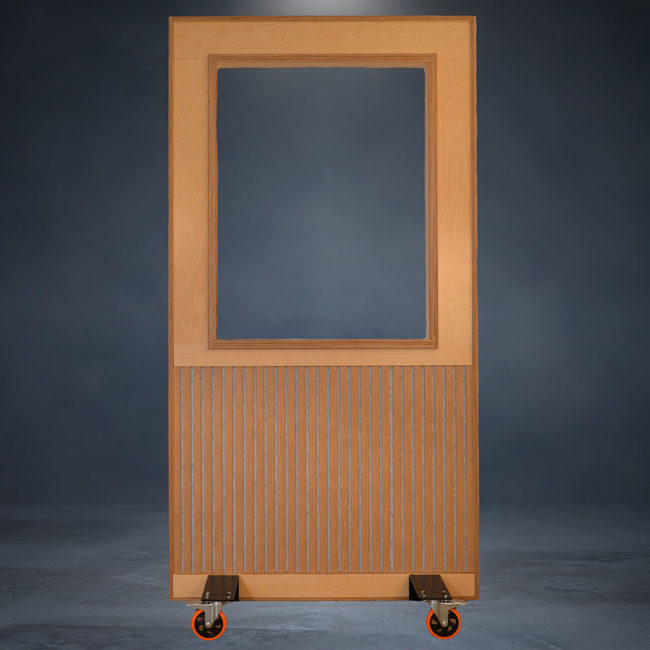

Shown in Birch, with a Window option, the Slats are Luxury Natural American Oak on Gray. |

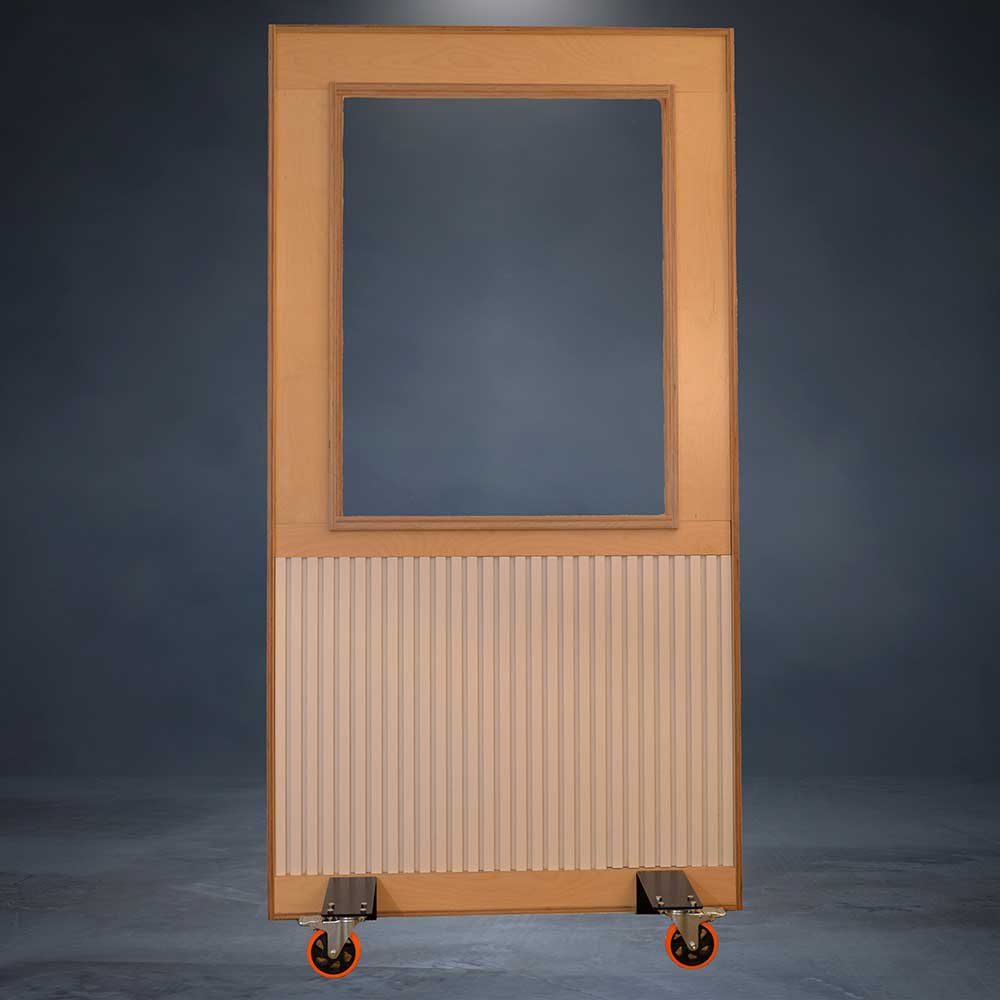

Shown in Birch, with a Window option, the Slats are Luxury Natural American Oak on Gray. |
View Shop Drawings
You pick your SLATPANEL color of finish for each of the models from thewoodveneerhub.com
Options:
|

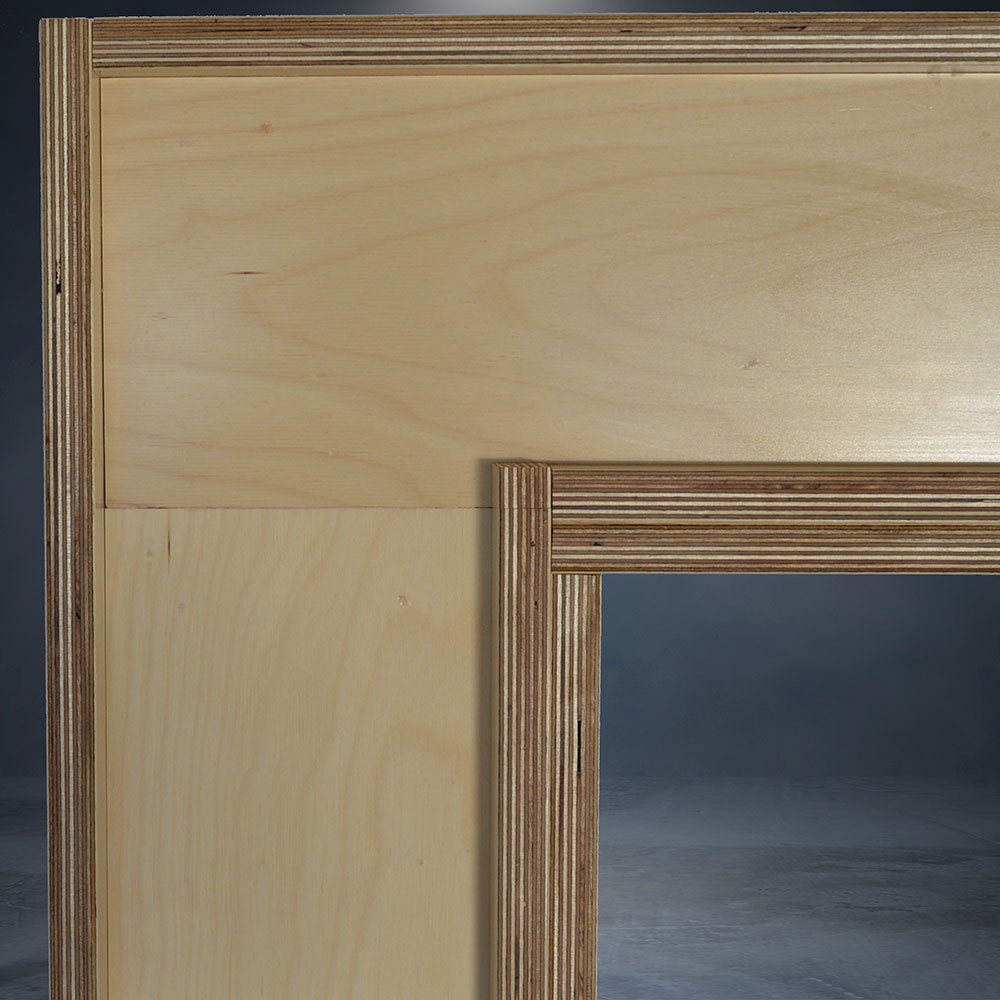

13-ply Birch |
|
Amber Bamboo – Hand-finished to semi-gloss. |
|
With or without a window |
Measurements:
46 5/8” wide x 90” high
Total height to floor: 92 ¼”
Panel Thickness : 3 ½”
Weight: 220 lbs +/- 8%
Fits through a standard 80” door.
TERMS
Minimum Quantity Set of 4
Shipping costs are NOT included. Estimate @ 15 – 20%. We are doing everything we can to keep shipping costs down. If we get lower rates, for example, for short distances, we will pass the savings on to you. Shipping may be estimated at the time you wish to place the order.
Payment by ETF is preferred, check or money order: 60% non-refundable deposit, balance including shipping due when ready to ship. An additional 3% charge is added for all credit card payments.
Lead Time is 4 – 8 weeks, but it may change as production is limited. The delivery date will be estimated when you place the order.
DISCLAIMERS
- Measurements are nominal +/- 1”
- We reserve the right to make changes to our products.
- Gobos are custom hand-made furniture items. Slight color variations and imperfections should be expected.
- The manufacturer does not guarantee that laminated glass will be free of imperfections, but the glass will be inspected before it is installed. Gobos are shipped with glass installed.
- Wheel carriages need to be installed, and hardware and instructions supplied.
- We cannot warranty. Different manufacturers supply materials.
- We pride ourselves on quality workmanship. Gobo’s will have a long and useful lifespan. We will support you with any issues. Because of the shipping complications, Gobos cannot be returned for service. Sound Control Room does not provide any remote service.
- Shipping claims must be handled directly with the provider. You are responsible for providing the shipper with any documentation they may require.
WEIGHTS per square foot
½” MDF = 2.1 pounds
BAMBOO PLY = 2.81 pounds
BIRCH 13-PLY = 2.34 pounds
WHEEL & CARRIAGE = 25 pounds
SLATLANELS = less than 1 pound
Weights may vary +/- 8%.
Bamboo Ply ¾” manufactured by Plyboo www.plyboo.com
Slatwall manufactured by SlatPanel www.thewoodveneerhub.com
Panels are not fire-rated.
Different companies may manufacture MDF, Birch, Wheels, and Glass.
